HAMMERHEAD POOL CLEANERS


SCROLL DOWN

HAMMERHEAD POOL CLEANERS



NOW AVAILABLE: NEW stainless MOUNT clamp

The new all stainless steel mount clamp latch is now available on the mount assembly set (part number HH1306) and the mount upright without hitch adapter (part number HH1307). The new clamp design has a simpler trigger release, a urethane bushing to eliminate side-to-side sway during transport, and a textured T-handle grip. Please note: To ensure proper fit with your existing cart, the new stainless clamp latch is only available pre-installed on the mount upright beam, and not as a separate replacement part.

the NEW BATTERY BOX is here

The new HH5056 Battery Box has been redesigned for easier battery access with an exclusive 3-piece design. Exposed battery terminals are unsafe! Use the right box for your marine battery. (Pictures coming soon).


PROUDLY SERVING THE SERVICE INDUSTRY FOR OVER 20 YEARS

We bought our first Hammer-Head in 2004. Since that time we bought three others. They’re a fabulous tool—our techs wouldn’t work without them. They’ve made some impossible pools possible, and it’s a great product.
— Windemere Pools, Central Florida

The Service-21 and Service-30 units mount securely to any trailer or 2" trailer hitch receiver for safe transport from pool to pool. Lightweight and easy to maneuver, service units can transport everything you need in one trip. Resort-21 and Resort-30 units are meant for on-site cleaning, and are perfect for the aquatics manager of any hotel, water park, condominium, or fitness center. Service and Resort use the same interchangeable parts and powerful 12volt motor, but are built using different cart frames. The caddy cart is the only main difference between a Service unit and a Resort unit.

Just set up next to the pool, attach a standard pool pole and instantly begin cleaning. Our patented head design and pressurized, 30-pound thrust motor, pump an amazing 16,000 GPH, vacuuming up almost anything— sticks, leaves, sand, and even coins. Hammer-Head's time savings (up to 50% per pool) helps increase overall profitability by shortening your day. You'll accomplish more with less effort, and your Hammer-Head unit will pay for itself in a matter of weeks. Once you try a Hammer-Head, you'll never want to clean pools with anything else.

Are you ready to WORK SMARTER?

CLEANERS BANNER 2.jpg

HAMMERHEAD POOL CLEANER SPECS


HAMMERHEAD POOL CLEANER SPECS


take our word for it: GOOD TOOLS PAY FOR THEMSELVES

We make our industry standard pool cleaning machines in several different configurations. All of our cleaners use interchangeable parts and debris bags for convenience, and all use our sealed and pressurized motor assembly. What's the difference between Service and Resort units? It's all in the cart. Click on the pictures below to review the features on each cleaner.

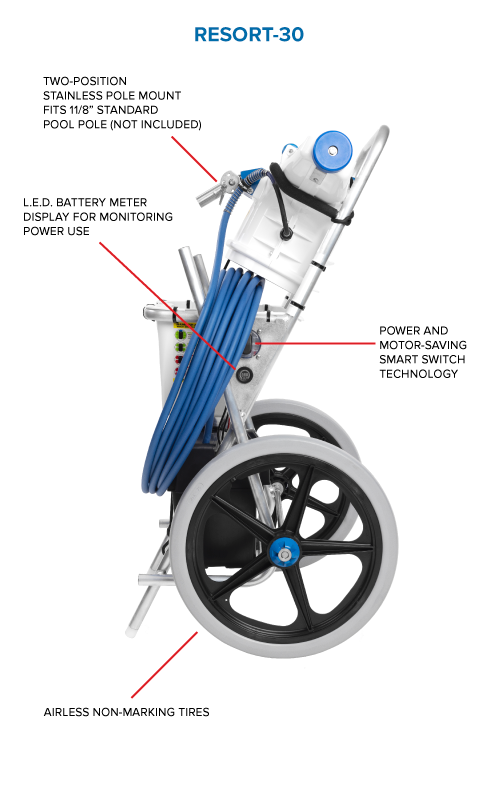

RESORT UNITS - FOR FACILITY MANAGERS

Please note: Because of the cart design, Resort units DO NOT include and are NOT compatible with our vehicle mount assembly. If you need to transport the cleaner using your vehicle's trailer hitch, please see the SERVICE-21 and SERVICE-30. Resort-21 and Resort-30 units are meant to be left on site. The two standard configurations are the Resort-21, which has a 21" vacuum head and a 60ft power cord, and the Resort-30, which has a 30" vacuum head and a 60ft power cord. All resort units ship fully assembled. (Due to ongoing improvements, products may be slightly different than as pictured).

NOT INCLUDED:

  • 12 VOLT DEEP CYCLE MARINE BATTERY
  • STANDARD POOL POLE
  • NOT COMPATIBLE WITH THE HH1300 VEHICLE MOUNT

SPECIFICATIONS:

  • 21" OR 30" INJECTION MOLDED VACUUM HEAD
  • NON-MARKING, BEARINGLESS, CAST URETHANE HEAD WHEELS
  • STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the Resort-30)
  • ALL STAINLESS HARDWARE
  • FEATURING THE NEW SMART SWITCH™ (The new HH1062 Smart Switch comes standard on all Hammer-Head pool cleaning units. SMART SWITCH™ features include a motor-saving overload sensor, two speeds, and an automatic shutoff when the motor is out of the water for more than a minute).
  • NOCO GENIUS BATTERY CHARGING PORT (compatible with HH1900 Noco Genius Charger G7200)
  • NOCO GENIUS G7200 CHARGER (Included with all Resort Units)
  • 35# THRUST PRESSURIZED MOTOR
  • 60FT FLOATING POWER CORD
  • THREE BLADE PROPELLER
  • WELDED ALUMINUM CADDY CART
  • 20" MAG BMX-STYLE CART WHEELS
  • NON-MARKING SOLID TIRES
  • STAINLESS WHEEL BEARINGS
  • TWO DEBRIS BAGS (HH1506 AND HH1508)
  • DIMENSIONS: 26" CART WIDTH, 46" OVERALL HEIGHT, 27" FRONT TO BACK DEPTH
  • RESORT-21 WEIGHT WITH 27 SERIES MARINE BATTERY: 105 LBS
  • RESORT-30 WEIGHT WITH 27 SERIES MARINE BATTERY: 107 LBS
  • 21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS
  • 30" VACUUM HEAD & MOTOR WEIGHT: 13 LBS

SERVICE UNITS - FOR POOL ROUTE TECHNICIANS

Service-21 and Service-30 units are meant for pool-to-pool route work, and include a mount assembly for transport. Mount assemblies (HH1300) are compatible with any 2" hitch receiver. The two standard units are the Service-21, which has a 21" vacuum head and a 40ft power cord, and the Service-30, which has a 30" vacuum head and a 60ft power cord. Service-21 units are also available with a 60ft power cord as an option. (See Optional Configurations below). Service units ship partially assembled. Some assembly and set-up of the vehicle mount is required. (Due to ongoing improvements, products may be slightly different than as pictured).

NOT INCLUDED:

  • 12 VOLT DEEP CYCLE MARINE BATTERY
  • BATTERY CHARGER
  • STANDARD POOL POLE

SPECIFICATIONS:

  • 21" OR 30" INJECTION MOLDED VACUUM HEAD
  • NON-MARKING, BEARINGLESS, CAST URETHANE HEAD WHEELS
  • STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the Service-30)
  • ALL STAINLESS HARDWARE
  • FEATURING THE NEW SMART SWITCH™ (The new HH1062 Smart Switch comes standard on all Hammer-Head pool cleaning units. SMART SWITCH™ features include a motor-saving overload sensor, two speeds, and an automatic shutoff when the motor is out of the water for more than a minute. Service-type units can also be equipped with the standard HH1061 MINI ON-OFF SWITCH on request. Just ask your dealer).
  • NOCO GENIUS BATTERY CHARGING PORT (compatible with HH1900 Noco Genius Charger G7200)
  • 35# THRUST PRESSURIZED MOTOR
  • 40FT OR 60FT FLOATING POWER CORD
  • THREE BLADE PROPELLER
  • WELDED ALUMINUM CADDY CART
  • 20" MAG BMX-STYLE CART WHEELS
  • NON-MARKING SOLID TIRES
  • STAINLESS WHEEL BEARINGS
  • VEHICLE MOUNT ASSEMBLY (HH1300)
  • TWO DEBRIS BAGS (HH1506 AND HH1508)
  • SERVICE-21 WEIGHT WITH 27 SERIES MARINE BATTERY: 110 LBS
  • RESORT-30 WEIGHT WITH 27 SERIES MARINE BATTERY: 110 LBS
  • 21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS
  • 30" VACUUM HEAD & MOTOR WEIGHT: 13 LBS

OPTIONAL CONFIGURATIONS:

  • SERVICE-21-60 (with 60ft power cord)
  • SERVICE-21-NM (without the vehicle mount assembly)
  • SERVICE-30-NM (without the vehicle mount assembly)
  • SERV-CART (complete cart assembly only)
  • SERV-CART-NM (complete cart assembly without the vehicle mount)
  • HH1070 CART FRAME ONLY (see PARTS)

COMPLETE VACUUM HEAD ASSEMBLIES

NOT INCLUDED:

  • 12 VOLT DEEP CYCLE MARINE BATTERY
  • BATTERY CHARGER
  • STANDARD POOL POLE
  • BATTERY CASE, BATTERY CONNECTORS, CADDY CART, OR ON/OFF SWITCH
  • PLEASE NOTE: Complete vacuum heads do not come with battery-side connections. Wire ends are bare for connection to a Hammer-Head cart or directly to a 12 volt battery using ring terminals or alligator clips.

SPECIFICATIONS:

  • 30" INJECTION MOLDED VACUUM HEAD
  • CLEARANCE OVER POOL FLOOR = 1"
  • NON-MARKING, BEARING-LESS, CAST URETHANE HEAD WHEELS
  • STAINLESS POLE SWIVEL MOUNT (two position adjustable angle standard on the HH1320 30" COMPLETE VACUUM HEAD)
  • ALL STAINLESS HARDWARE
  • 35# THRUST PRESSURIZED MOTOR
  • 40FT OR 60FT FLOATING POWER CORD
  • THREE BLADE PROPELLER
  • ONE DEBRIS BAG (HH1508 SUPERFINE)
  • 30" VACUUM HEAD & MOTOR WEIGHT: 13 LBS
  • SHIPPING DIMENSIONS: 31" X 19" X 13"
  • ACTUAL SHIPPING WEIGHT: 26 LBS

NOT INCLUDED:

  • 12 VOLT DEEP CYCLE MARINE BATTERY
  • BATTERY CHARGER
  • STANDARD POOL POLE
  • BATTERY CASE, BATTERY CONNECTORS, CADDY CART, OR ON/OFF SWITCH
  • PLEASE NOTE: Complete vacuum heads do not come with battery-side connections. Wire ends are bare for connection to a Hammer-Head cart or directly to a 12 volt battery using ring terminals or alligator clips.

SPECIFICATIONS:

  • 21" INJECTION MOLDED VACUUM HEAD
  • CLEARANCE OVER POOL FLOOR = 1"
  • NON-MARKING, BEARING-LESS, CAST URETHANE HEAD WHEELS
  • STAINLESS POLE SWIVEL MOUNT
  • ALL STAINLESS HARDWARE
  • 35# THRUST PRESSURIZED MOTOR
  • 40FT OR 60FT FLOATING POWER CORD
  • THREE BLADE PROPELLER
  • ONE DEBRI BAGS (HH1508 SUPERFINE)
  • 21" VACUUM HEAD & MOTOR WEIGHT: 11 LBS
  • SHIPPING DIMENSIONS: 19" X 19" X 13"
  • ACTUAL SHIPPING WEIGHT: 21 LBS
We don’t even carry conventional vac hoses or vac heads on our trucks anymore. The Hammerhead is easily one of the best investments I ever made. It has revolutionized pool cleaning. I don’t get upset when I get to a trashed pool anymore...I know we will be done cleaning it in 10 min instead of an hour. Thanks Hammerhead!
— Rich Tarricone
